To start with, the right plastic pipe material when designing your next plumbing project can prove the distinction between a plumbing system that will serve for several decades and one that will need repairs more regularly. There are two materials that are dominant in the modern plumbing scene, PVC pipe and HDPE pipe.
High-density polyethylene pipe and polyvinyl chloride provide great advantages over traditional metal pipes. They are corrosion-resistant, lighter and easier to install at a lower cost. There are different properties of each material that are unique in a way, which causes it to be more preeminent in particular applications.
This detailed guide is going to help you comprehend these essential distinctions between these alternatives of plastic water pipes of the industry of water pipes of Plastic: By the completion, you will have a firm understanding of what type of material will best suit the condition of your project, alongside what suits the budget of your project and your plans.

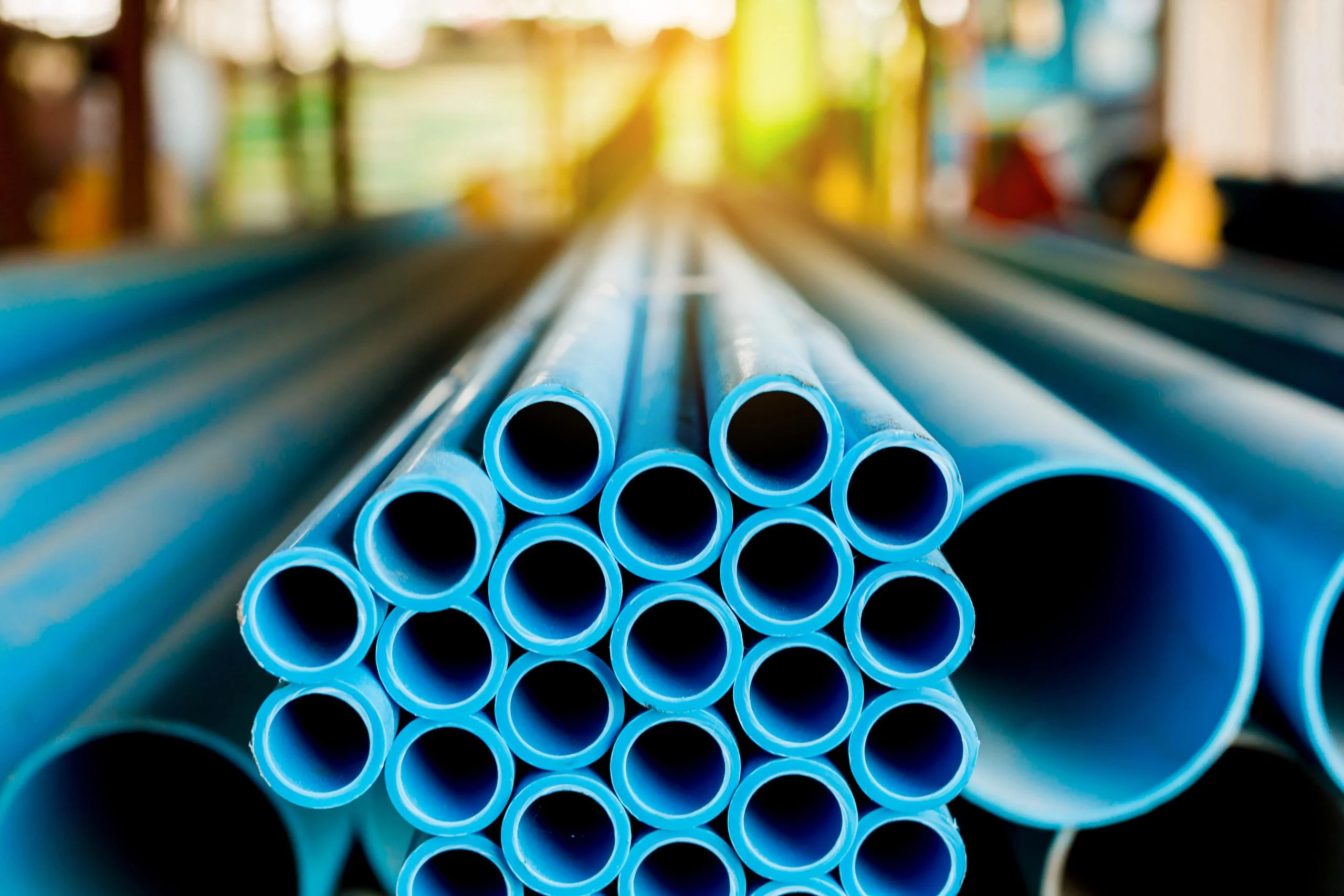

What Are PVC Pipes?
One of the most common plumbing plastic piping materials used both in residential and commercial plumbing is PVC pipe or polyvinyl chloride pipes. These white PVC pipe systems have been taking over the construction industry for almost 80 years.
Polyvinyl chloride pipes are very strong due to their good tensile strength and stiffness. This is what qualifies them as being very appropriate in those applications that demand high-quality, rigid piping. The product retains itself under pressure and gives good service under ordinary plumbing conditions.
Typical uses of the PVC pipe and fittings include cold water supply pipes, drainage, and electrical conduit protection. These systems are familiar to many homeowners in the form of their white color and smooth interior surfaces.
PVC fittings and PVC pipe fittings join with solvent cement easily and form strong joints within 8-10 hours. This type of joining is a proven, reliable residential plumbing process that has been in place for many decades.
Nevertheless, PVC pipeline systems are limited. They also work optimally in cooled temperatures and the temperatures are between 32 degrees to be specific and 140 degrees. In low temperatures (below -10°F), PVC turns into glass and shatterable, while it may break down under the impact of extended UV light.
Key Features of PVC Pipes:
- Lightweight and easy to install
- High resistance to chemical corrosion
- Smooth inner surface reduces friction and enhances water flow
- Affordable and widely available
- Suitable for cold water plumbing and drainage

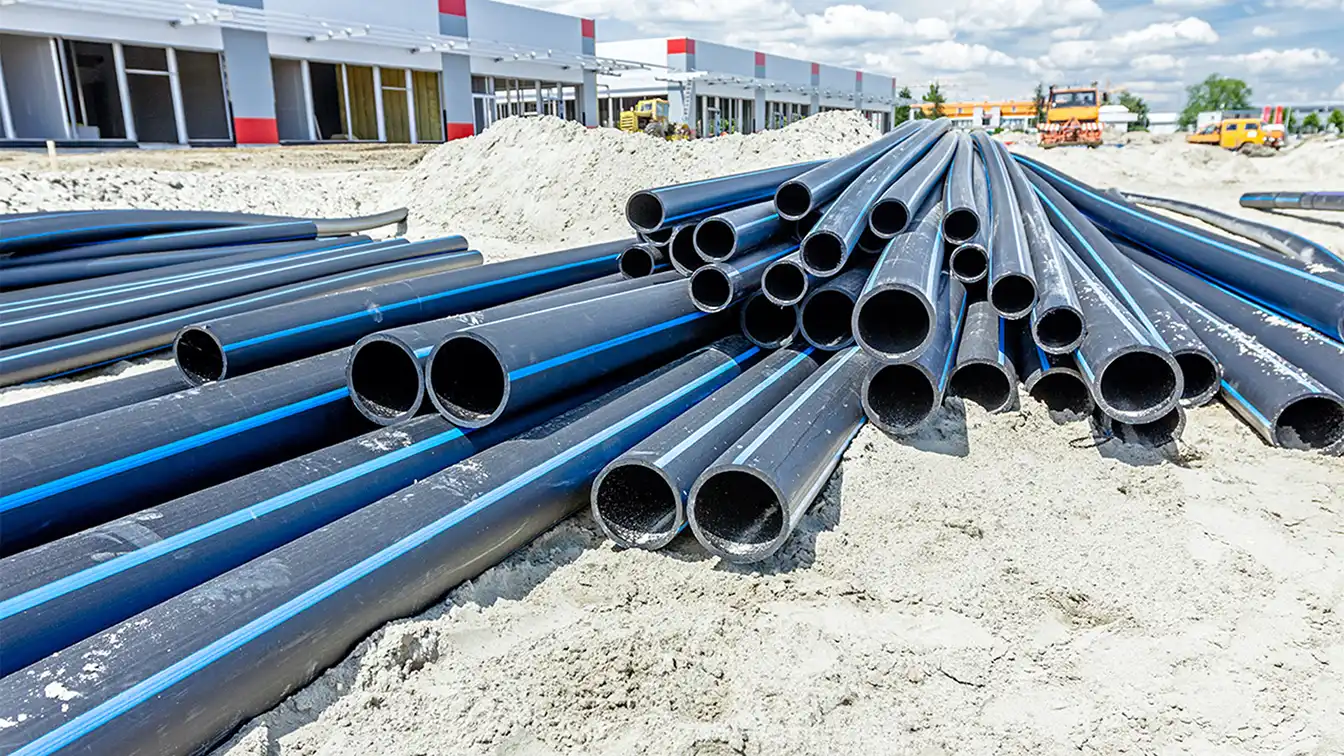

What Are HDPE Pipes?
High density polyethylene pipe is the latest in plastic pole plumbing technology. These systems contain thermoplastic made from petrol-based material with excellent flexibility and impact resistance characteristics as compared to the traditional plastic pipe options.
Having demonstrated outstanding performance in challenging applications that feature high persistence and versatility, HDPE pipe has become a very popular medium. The molecular structure of the material offers amazing protection against environmental stress cracking and fatigue cracking.
Water and wastewater pipelines and oil and gas transfer systems can benefit from the use of HDPE. Sectors are approaching this plastic water pipe in the construction of critical infrastructure projects where reliability over time is of paramount consideration.
It is flexible, which makes it versatile in terms of installation ideas. The HDPE pipe can go around obstructions and also accommodate any ground movement hassle-free, and yet maintain system integrity.
Installation is a process commonly handled by heat fusion welding and forms leak-free and seamless joints at a rate of about 8 minutes. The arrangement of this joining method means that chemical adhesive is unnecessary, and that the connections will be stronger than the pipe itself.
High-density polyethylene pipe is offered that performs at both extremes of the temperature range, -40°F to 176°F. This wide acceptance of toleration makes it applicable in machinery where the environmental conditions are subject to big fluctuations.
Key Features of HDPE Pipes:
- Highly flexible, allowing for easy installation in difficult terrains
- Superior impact and stress resistance
- Resistant to UV rays and chemical corrosion
- Long lifespan of 50+ years
- Ideal for water supply, irrigation, and sewage systems
Key Differences Between PVC and HDPE Pipes
| Feature | PVC Pipe | HDPE Pipe |
|---|---|---|
| Material Type | Polyvinyl chloride (vinyl polymer) | High-density polyethylene (petroleum-based thermoplastic) |
| Pressure Resistance | 100 psi above pressure class | 2x the pressure class |
| Max Flow Rate | 5.5 feet per second | 14 feet per second |
| Temperature Range | 32°F to 140°F (-1°C to 60°C) | -40°F to 176°F (-40°C to 80°C) |
| Flexibility | Rigid, bend radius 200x diameter | Flexible, bend radius 25x diameter |
| Installation Method | Solvent cement (8-10 hour cure) | Heat fusion (8 minutes) |
| UV Resistance | Poor (degrades in 3 years) | Excellent (20+ years) |
| Water Hammer Resistance | Standard | 2,500x more resistant |
| Typical Lifespan | 30 years (8-15 years range) | 50-100+ years |
| Initial Cost | Lower | Higher |
| Best Applications | Cold water, drainage, electrical conduit | Water mains, gas lines, challenging environments |
Pressure Resistance and Flow Capacity
The handling pressure performances of the materials of these plastic pipes distinctly differ. PVC pipe can manage a pressure amplified by 100 psi, exceeding that class, and HDPE piping twofold that strength.
Flow rate restrictions are also largely disparate; HDPE pipes can withstand a 14 ft/sec flow rate before the pressure limits take a hit, whereas PVC pipes are only capable of 5.5 ft/sec.
HDPE pipe exhibits good resilience when a water hammer takes place. HDPE is 2,500 times stronger against damage by water hammer and fatigue than polyvinyl chloride.
Temperature Performance
Temperature tolerance is one of the most important selection criteria in plastic use as a water pipe. Pipe made with high density polyethylene is flexible and holds up against a much wider range of temperatures.
To retain mechanical characteristics, HDPE pipes can withstand temperatures between about -40 °C (-40 °F) and 80 °C (176 °F). Compared to this, the PVC pipes have the upper-temperature limit of 60°C.
Even greater differences can be seen when cold temperature capabilities are tested. Although PVC pipe will harden and break at freezing conditions, HDPE pipe remains flexible and is impact-resistant.
Installation Flexibility
The bending radius capacities signify another big variance between these plastic pipe options. HDPE pipes can make tighter curves than PVC pipes, whose bend radius is 200 times the outside diameter.
A few of the Pipe Plastics, such as 4 inch PVC pipe, 5-inch and others, need thorough planning around obstructions. Pipe with the identical diameter of HDPE pipe can go around the obstructions with minimal hardware additions.
UV Resistance and Durability
The ultraviolet radiation wavelength has varied results on such materials. Resistant to UV rays; DPE will remain unaffected by the harmful radiation of the sun even after 20 years, but with PVC, it may not stand the test of UV rays for more than 3 years.
This distinction is the reason high density polythene pipe is more suitable to above-ground applications or for temporary constructions. Plastic PVC pipe material must be secure against exposure to sunlight in transport as well as in construction.
Several tests discovered that the PVC pipe range possessed a lifetime of 30 years- again, the range span of this pipe was between 8 and 15 years, whereas the life durability of HDP,E referred to as hdpe pipe systems, could last more than 100 years with appropriate installation.
Cost Comparison and Long-term Value
Preliminary costs of materials are on the side of pvc pipe and fittings, making them highly appealing on cost-saving projects. The entire project economics involves the installation time, reliability of joints, as well as the maintenance of a long-term life.
Although HDPE is somewhat stronger and more flexible than PVC and does not degrade, it is a little more expensive to purchase than the competition. A disadvantage of the higher initial outlay is that it may be self-repaying in lowered maintenance and replacement costs.
The cost differences can be overcome through installation efficiency. Heat fusion joints do not need any curing time and therefore, they allow system pressure to increase immediately. PVC fittings take 8-10 hours of curing time, after which the system can be put into use.
Your estimated life cycle of your project must also be considered in the evaluation of costs. PVC plastic piping is a great value temporarily. When it comes to permanent infrastructure, the high-density polyethylene pipe in most instances would offer greater long-term value.
Scotto Pipes is a leading plastic pipe manufacturer that produces a wide range of plastic pipes, such as PVC pipes, UPVC pipes, garden pipes, and suction pipes. Scotto Pipes is tailored with an emphasis on quality, durability, and cost-effective solutions across both residential and industrial projects to offer reliable, long-lasting performance and value over a broad range of applications.
FAQs
1. What is PVC pipe?
PVC (Polyvinyl Chloride) pipe is a type of rigid plastic pipe widely used for plumbing, water supply, irrigation, and drainage systems. It is lightweight, durable, and corrosion-resistant.
2. What are the types of PVC pipes?
Schedule 40 PVC Pipes: Standard thickness, commonly used for water supply.
Schedule 80 PVC Pipes: Thicker walls, suitable for high-pressure applications.
PVC-U Pipes (Unplasticized): Rigid and strong, often used in drainage and sewage.
3. What are the main uses of PVC pipes?
Residential and commercial water supply, irrigation systems for agriculture, sewerage and drainage systems, and industrial piping for chemicals.
4. How are PVC pipes installed?
PVC pipes are typically joined using solvent cement (glue) or mechanical fittings. Installation involves cutting, cleaning, applying primer and cement, and connecting securely.
5. Are PVC pipes safe for drinking water?
Yes, certified PVC pipes for potable water are safe for drinking, as they are free from harmful chemicals and meet health standards.
6. How long do PVC pipes last?
PVC pipes generally have a lifespan of 50–100 years under normal usage, depending on pressure, environmental conditions, and proper installation.
7. Can PVC pipes be used outdoors?
Yes, but UV protection is recommended to prevent long-term damage from sunlight. Painting or covering the pipes can help increase lifespan.
8. How do PVC pipes compare to HDPE pipes?
PVC pipes are rigid and cheaper, ideal for low-pressure applications. HDPE pipes are flexible, more durable, and better for high-pressure or underground applications.
Conclusion and Recommendations
PVC pipe and HDPE pipe have a significant place in present-day plumbing system. Your decision as to which is used will be determined by the type of application you need to run and out of environmental factors and budget.
Use polyvinyl chloride pipes in low-pressure applications where medium pressure and stable temperatures and environment are needed and standard room temperatures are a factor. They are best at residential plumbing, drainage systems and electrical conduit placements.
Use high density polyethylene pipe to handle even the most challenging applications where high-quality durability, flexibility and chemical resistance are paramount. Consider industrial use of hdpe pipe, including underground utilities, or systems that face a drastic climate.
In cases of critical installation with extensive design life, hdpe pipe may generally give the best value even after the higher initial cost. The benefits of the heat fusion joining system and excellent environmental resistance that many commercial and municipal projects experience outweigh the expenses.
