Selecting the proper PVC pipe size may seem like a puzzle game. When you go to a hardware store and look at aisles of white PVC pipe with indecipherable numbers stamped on it, you wonder which size to use. The problem is that when you come to the realization that a 1-inch pipe is not really 1 inch wide.
Don't worry – you're not alone in this confusion. Understanding PVC pipe size isn't rocket science once you know the basics. This guide demystifies everything concerning plastic pipe size, including measurement methods and, selection of the best PVC pipe diameters that suit your needs.
Understanding PVC Pipe Dimensions Fundamentals

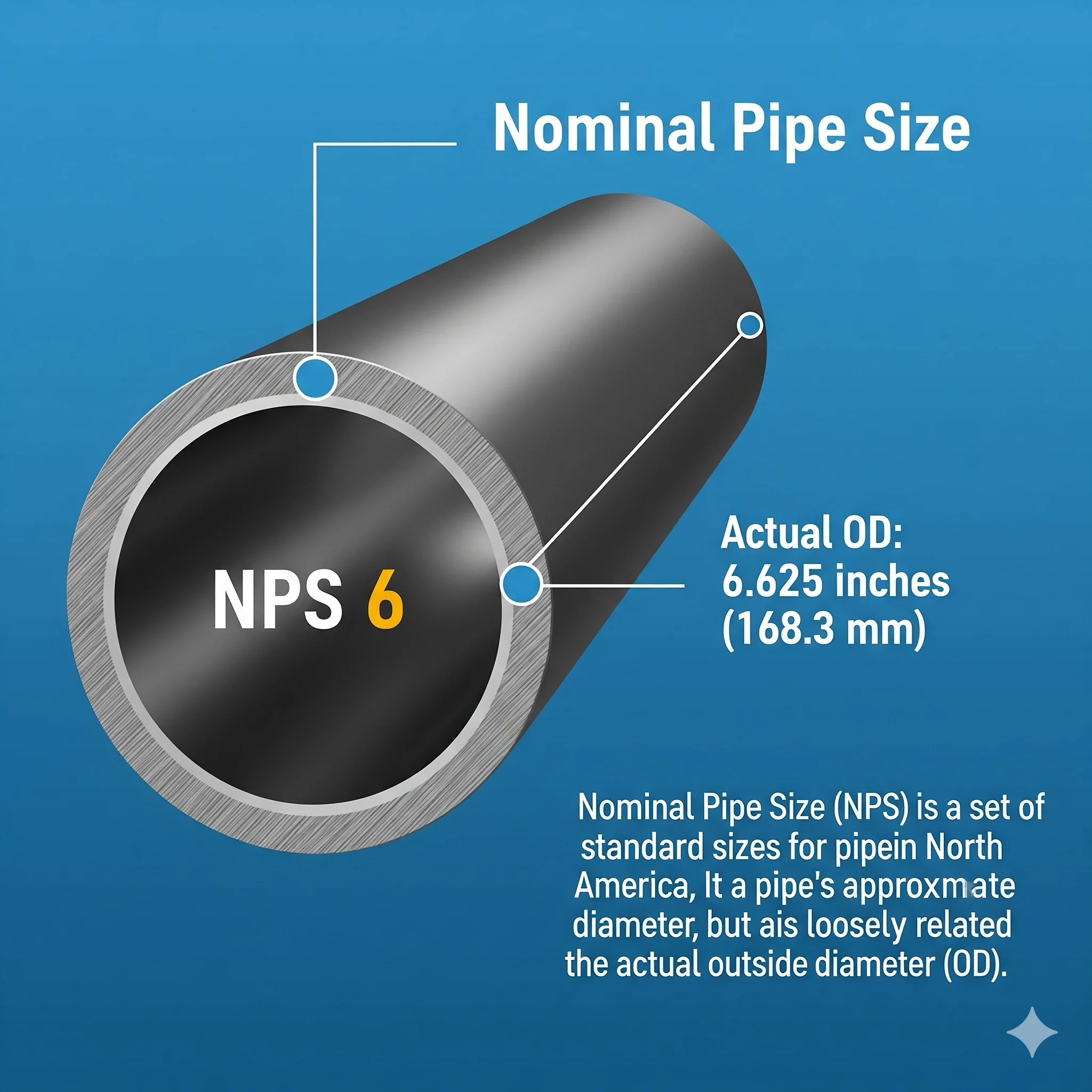

What is Nominal Pipe Size (NPS)?
Polyvinyl chloride pipes are referred to by something called Nominal Pipe Size (NPS) in the plumbing world. This system concentrates on the inside diameter of the pipe as opposed to the outside measurements of the pipe. View it as a naming convention for allowing manufacturers to make compatible parts.
When you read the descriptive phrase 1-inch PVC pipe, you would expect that the pipe is about 1 inch in diameter internally. The inner dimension may vary a little but you can use all 1-inch PVC pipes, PVC fittings, etc. This kind of standardization renders the choice of compatible parts to be much simpler
There is the NPS system in place because there is a thickness of pipe walls. A 1 inch pipe must have thick enough walls to deal with pressure and wear. The inner dimension of 1 inch is added to the PVC pipe thickness, creating a larger diameter.
Key Measurements Every DIYer Should Know
Understanding these helps you pick the right pipe and avoid costly mistakes.
-
Inside diameter (ID) is the distance of the area within the pipe within which flow takes place. The flow capacity of the pipe is measured using this quantity. Larger IDs will do greater volume.
-
Outside Diameter (OD) is a measure between both the outward edges. Although significant in storage and installation joining spacing, OD has nothing to do with the nomination of the PVC pipe size. Schedules that have the same PVC pipe dimensions have the same OD.
-
Wall thickness varies based on the pipe's schedule rating. Thicker walls take greater pressure but block the interior space a little more. Strength and flow capacity are both affected by this measurement.
Common PVC Pipe Sizes and Their Applications
1. Standard Residential Sizes
When choosing pipes to use in homes or business facilities, most individuals begin with standard PVC pipe sizes. These are the most popular choices in most hardware stores and supply chains.
-
The PVC pipe diameters that the residents can have access to at home range between 1/2-inch and 4 inches. All the sizes have a purpose when using them in residential plumbing applications and DIY projects.
-
PVC pipes fit ideally in small-diameter water lines and irrigation systems as well as 2-inch diameter. The dimensions are commonly applied by homeowners who irrigate with drip irrigation or connected appliances. Its size is also compact enough to run through spaces.
-
3/4-inch pipes handle slightly more flow than 1/2-inch versions. Water supply systems used in residences and moderate irrigation will have these. They balance flow capacity with material costs effectively.
-
Most homes have main water supply pipes that are fitted with 1-inch and 1.5-inch in diameter. These dimensions of plastic pipes are ideal in this respect as to flow, but are still manageable with most DIY installations. They are becoming common in the pool plumbing and greater irrigation areas.
-
2-inch PVC pipes are quite typically used in drain and vent systems. This drain size is actively used to accommodate moderate flows of wastewater in wash basins, showers, and laundry. Many homeowners use 2in PVC pipe fittings for basement drainage projects. These are the common PVC pipe sizes used in day-to-day residential plumbing applications.
2. Large Diameter Applications
-
4-inch and 6-inch PVC pipe tackle serious drainage and sewer applications. Main sewer lines, storm and industrial applications handled by these are large plastic pipes. The 6in PVC pipe, in particular, is effective in the sewer connection of the whole house.
-
Constructions are usually in even more significant sizes. Pipes of 8, 10 or 12 inches are used in municipal water systems, large drainage systems and commercial use. These sizes only fit special equipments to be installed.
-
Industrial applications sometimes use massive pipes measuring 14 or 16 inches. These giants process immense quantities of water in treatment facilities, in large drainage systems, and in process industries.
About Scotto Pipe
Scotto Pipe is one of the top PVC pipeline manufacturers and suppliers that offer a broad range of pipes suitable for various purposes. They offer PVC, uPVC, garden and suction pipes in different sizes according to the requirements of or to fulfill the needs of the residential, business and industrial requirements. Scotto Pipes offer high-quality and durable products constructed to provide excellent water supply, drainage, irrigation and industrial piping solutions to various projects.
PVC Pipe Schedule Systems
Not every PVC pipework size is cut equally. The PVC pipe thickness is set by the system of scheduling that influences strength and pressure capacity.
-
Schedule 40 PVC pipe is the most common type you'll encounter. Monitoring fitting Schedule 40 should be adequate as a street fitting for residential and light commercial applications. These are usually white PVC pipes, which can handle 120-810 PSI variety of pressures, depending on size. You can use them for home plumbing, irrigation systems and pool installations.
-
Schedule 80 PVC pipe is thick-walled and can withstand considerably greater pressure. As an example, a 1-inch schedule 40 pipe can carry 450 psi at room temperature, whereas a 1-inch schedule 80 pipe will handle 630 psi at room temperature. These are normally gray and are more expensive given the additional material.
Here is something significant: both tightening schedules have the same nominal diameter outside diameters. The distinction of Schedule 80 is in the PVC pipe thickness, and as a result has a smaller inside diameter. This influences flow capacity and allows PVC pipe fittings to be used interchangeably between schedules
What Size PVC Pipe Do I Need for My Project?
Selecting the right PVC pipe size relies on several factors. Get started, identify what your application is- is this intended to be used in water supply or drainage, or something else?
For drainage systems, bigger is often better. Small drain pipes may lead to back-up and slow movement. Water supply piping must offer a mix of water velocity and loss of pressure - lesser piping means greater friction, and therefore decreased water pressure in fixtures.
Give great attention to flow requirements. A 2-inch PVC pipe main drain may be sufficient in a single-bathroom house or office, but in multi-bathroom residences or office buildings, the main drain must be 3-inch or larger to carry the maximum usage at once.
Make sure you don't forget the local codes. Most applications have mandatory requirements of the PVC pipe width in various applications. Make sure to check with your local building department before you initiate large-scale projects.
How Do I Measure PVC Pipe Size Correctly?
Here is where most people end up committing costly mistakes. Another error is to have an outside diameter of the PVC pipe, which results in a much bigger and improper size.
The best way to go is to read the print marking on the pipe that is made by the manufacturer. Count the numbers close to the manufacturer name, such as “1-¼” or “2”, which is your nominal size.
Where that marking is not visible, measure the outer diameter with care and refer to a sizing table. Polyvinyl chloride pipes have an outer diameter slightly larger than what their name shows. A 1 inch pipe has an actual size of 1.315 inches outside.
Do not measure in a single area - pipes are slightly oval-shaped. Measure more than one point and average out. As an attention to detail should clarify confusion, take a sample of a pipe to the shop to make a check.
What's the Difference Between Schedule 40 and Schedule 80?
Other than pressure ratings, these pipe schedules differ in a number of ways. Schedule 80 is more, therefore 20-30 percent more expensive than Schedule 40 owing to the extra material. Thicker walls translate into fewer flow capacity as well, which should be considered when it comes to high-volume applications.
Color codes are used to identify; schedule 40 is normally white PVC pipe, whereas schedule 80 is normally gray. Nevertheless, do not depend on the color alone because there are specialty applications that have varying colors.
Installation is also a bit different. Schedule 80 walls are thicker so that they may be threaded in smaller sizes, a commonly used nipple and connection size. It is also advantageous as the most preferred due to its extra strength, where in underground constructions and damage by crushing is a concern.
Are PVC Pipe Sizes mm the Same Worldwide?
Not exactly. Americans use inch-based nominal size as ASTM. Outside North America, such as much of Europe, Asia, and Australia, there is a metric-based metric system is the standard for PVC pipe sizes mm.
Metric scales measure in millimeters, and the sizes of PVC pipes sizes mm is the outside measurement. A nominal 50mm pipe, in fact, measures 50mm on the outside as opposed to the North American nominal system.
This poses compatibility problems in obtaining international materials. It is important to check the measuring system with the overseas suppliers before ordering PVC pipe fittings.
Can I Mix Different PVC Pipe Schedules?
Yes, but with important limitations. Schedule 40 and Schedule 80 PVC pipe and PVC pipe fittings have identical OD (outer diameters) and can be used interchangeably if needed. The fittings will physically connect.
Nonetheless, the integrity of the system is important. The integrity of a system made up mainly of Schedule 80 pipe is compromised by the use of Schedule 40 parts, as Schedule 40 has thinner walls, thus creating a weak link in a pressure situation.
The pressure rating to use when mixing schedules must be the weakest component. Where your system is required to have Schedule 80 pressure ratings, all the components should be accordingly.

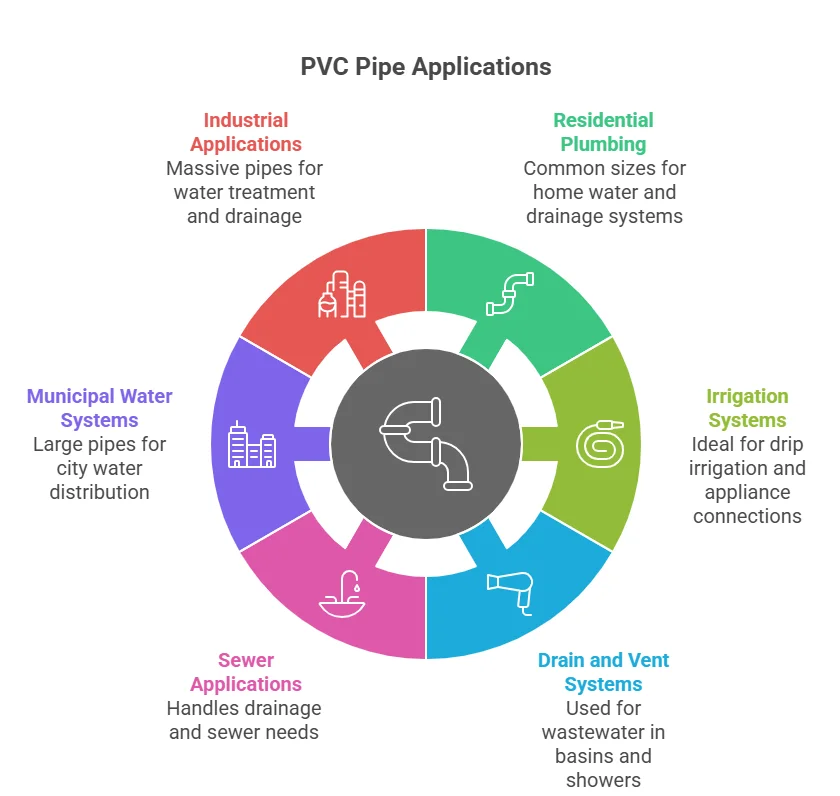

Common Applications for Different PVC Pipework Sizes
-
Residential Plumbing: White PVC pipe in 1/2"- 2" is most commonly found in the residential sector in water supply. Drainage is of 1-1/2 to 4, depending on the piece and local codes.
-
Irrigation Systems: PVC pipelines for sprinklers commonly have PVC irrigation systems with 1 inch to 2 inches being used as the distribution line, and even larger sizes, particularly the main irrigation line. The lack ofthe friction-reducing effect of the smooth inner skin on long runs is eliminated.
-
Industrial Usage: Chemical processes and manufacturing and wastewater treatment processes are handled using large plastic pipes. These installations frequently use Schedule 80 or other special compositions to deal with chemicals.
-
Drainage and Sewer: The main sewer line often provides 4 to 8 inch PVC pipe dia to serve as a residential connection, and get scaled up to massive pipe sizes in municipal works. PVC is the perfect material in such applications because of its corrosion resistance.
Choosing the Right PVC Pipe Thickness
The wall thickness will influence other than the pressure rating. Increased wall thickness ensures added crush resistance with buried applications and less transmission of noise within building walls.
Above-ground residential Parapet LA-10 Schedule 40 generally offers sufficient strength in above-ground residential applications. Schedule 80 has added durability in such installations as underground, when heavy soil or high vehicle traffic loads are present.
Allowance must be made for thermal expansion in long lengths. PVC drainage will swell and shrink along with temperatures. Proper expansion joints and flexible connections: Stress failures in rigid systems are eliminated by proper expansion joints and flexible connections.
Making the Right Choice for Your Project
The foundation of success is knowing your individual needs. The choice of the optimum PVC pipe dimensions is conditioned by the flow rates, pressure requirements, compatibility with various chemicals and installation conditions.
Do not overlook future demand. Through upsizing marginally at the time of initial installation, the cost is lower than the price incurred in retrofitting at a later stag.e Conservative sizing works especially well in drainage systems - a larger-than-needed pipe can always be used with less water, but an undersized pipe simply can not handle any more.
Do not forget that there is a quality as well as a size. Make sure the PVC pipe and PVC pipe fittings are from repute companies that conform to appropriate ASTM standards. The initial cost advantage of using cheap material rarely justifies these long-run hassles.
Getting to grips with PVC pipe size does not need to be confusing once you have the fundamentals. The trick is to match the particular pipe specs to your project requirements, whether you need 2in PVC pipe fittings for a home bathroom or large diameter plastic pipes to adorn your commercial premises. Always take your time when making pressure and flow measurements and make sure you interpret them accordingly. Learn what schedule to pick based on your application requirements. Now you can use these facts to expertly choose the best PVC pipework sizes to use in any scenario.
